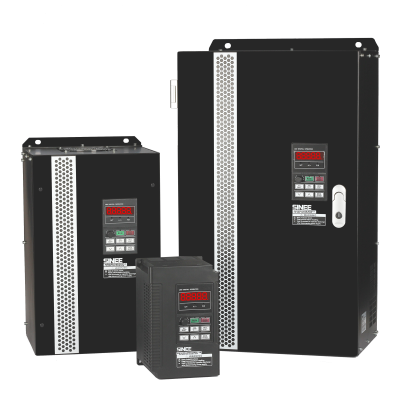

EM330D Builder lift inverter

3-phase 380 V-20%~415V+20%, 3.0~400kW

EM330D is a specially designed inverter for hoisting in open loop control mode like builder lift etc.

1.Technical Features

① . Stable torque output, 150% rated torque at 0Hz, the hoist operates smoothly during starting, hoisting and fall.

② . Special brake control logic.

③. Optimum current limit, trip fault will not occur when the load varies frequently.

④. Wide range of input voltage by AVR technology, high torque output remains when under voltage.

⑤. Wide range of speed regulation meets the requirements for high speed under light load and low speed under heavy load, significantly increasing the operation efficiency of the hoist.

2. Wiring diagram

3.Specifications

Items		Specifications
Mains supply	Rated Voltage	3-phase 380 V-20%~415V+20%, 50/60Hz±5%, voltage imbalance rate<3%
Output	Output Voltage	3-phase, from 0 to mains supply
	Rated Output Current	100% rated current non-stop output
	Max. Overload Current	150% rated current for 1 minute, 180% rated current for 10 seconds
Control Functions	Control Mode	Specialized hoisting control
	Input Mode	Frequency (Speed) input
	Running Mode	Keyboard, control terminals (2-wire sequence, 3-wire sequence), RS485
	Frequency Control Range	0.00~600.00Hz
	Input Frequency Resolution	Digital input: 0.01Hz Analog input: 0.1% of maximum frequency
	Speed Regulation Range	1:100
	Speed Control Accuracy	±0.5% rated synchronous revolution
	Acceleration/ Deceleration Time	0.01~600.00 seconds/minutes
	V/F Features	Rated output voltage: 20%~100% adjustable Frequency base: 20.00~600.00Hz adjustable
	Torque Boost	Automatic torque boost, fixed torque boost curve
	Starting Torque	150%/0.5Hz
	AVR	AVR is active while output voltage remains unchanged if input voltage is varying.
	Automatic Current Limit	Automatically limit output current, avoid frequent overcurrent tripping. (Do not apply this function to building lift and hoisting of tower crane)
	DC Brake	Brake frequency: 0.1~60.0Hz, brake time: 0~30s Brake current: 0~150% rated current
	Signal Input Source	Communication, analog voltage, analog current, preset speed, simple PLC or its group wares.
Input/ Output Functions	Reference Power	10V/20mA
	Terminal Control Power	24V/150mA
	Digital Input Terminals	7 programmable input terminals
	Analog Input Terminals	4 analog inputs: 2 voltage input (0~10V) and 2 current inputs (0~20mA)
	Digital Output Terminals	2 OC outputs and 1 relay output are programmable Maximum output current of OC: 50mA
	Digital Output Terminals	Relay contact capacity: 250VAC/3A or 30VDC/1A. When relay acts, EA-EC is on, and EB-EC is off
	Analog Output Terminals	2 programmable analog output terminals can output: 0~10V or 0~20mA
Keypad Display	LED	Human interactions with displays and control actuators
Keypad Display	Parameter Copy	Upload and download parameter information of the inverter, copy parameters rapidly
Protection	Protection	Short circuit, overcurrent, overvoltage, overload, phase loss, undervoltage, overheating, external faults, etc.
Application Conditions	Installation Site	Indoor, with altitude less than 1,000 meters, free from dust and corrosive gas, and direct sunlight
	Ambient Temperature	-10℃~+50℃. Derated from ambient +40℃~+50℃, 20%~90%RH (no condensation)
	Vibration	<0.5g
	Storage Temperature	-20℃~+65℃
	Installation Method	Installed inside the electric cabinet
Protection Grade		IP20
Cooling Method		Forced air cooling
Safety Standard		IEC61800-5-1:2007
EMC Standard		IEC61800-3:2004

4. Model Numbering Scheme

5. Model Number List

EM330D Outlook

2 Classified to 10 sizes for total 50 EM330D models, installation dimensions as shown below.

（a) Keypad Dimensions for Installation

(b) Overall of EM330D for Installation 1

Overall Installation Dimensions of EM330D

Remarks:
1. EM330D-090 or above: power input terminals are on the top, and power output terminals are at the bottom of the inverter.

Packing details of EM330D

Optional Accessories

Items	Describe	Pictures
GPS controller	Supporting GPS remote control system
CP series driver control board	used to control the system for drivers
